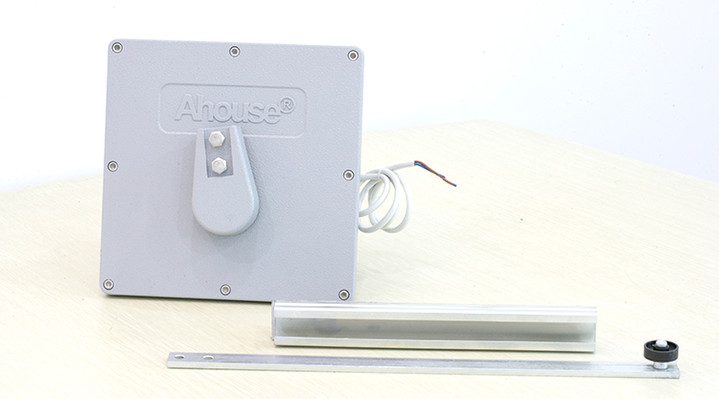

Underground Swing Gate Opener - UA
1.  Adjustable time of fast speed & slow speed
2.  Adjustment of force during fast speed & slow speed
3.  Auto Close function
4.  Adjustable closing time delay for motor with electric lock
5.  Single & dual swing is optional
6.  Max can up to 50 sets of remote controllers,
7.  DC 24V backup battery (Optional )
8.  Flashing light AC 220V/110V & DC 24V (Optional)
9.  Optional Device: DC 24V gate lock, photocell, keypad, push button, extensional receiver box


Input Voltage AC110V to 240V ±/10% 50 HZ
Operating voltage DC 24V
Electronic Controller Microcontroller based
Safety Detection Over current detection
Safety Barrier Infrared beam senor (optional)
Certification CE / IP67

Model UA
Max. Leaf's Weight 300 kg/ Leaf
Max. Leaf's Length 3 meter/ Leaf
Frame Housing Aluminum Alloy
Motor Rotational Speed 3500 rpm
Opening Degree 0 to 180 degree
90 Degree Rotation Time 10 seconds
Temperature -25℃ to +50℃

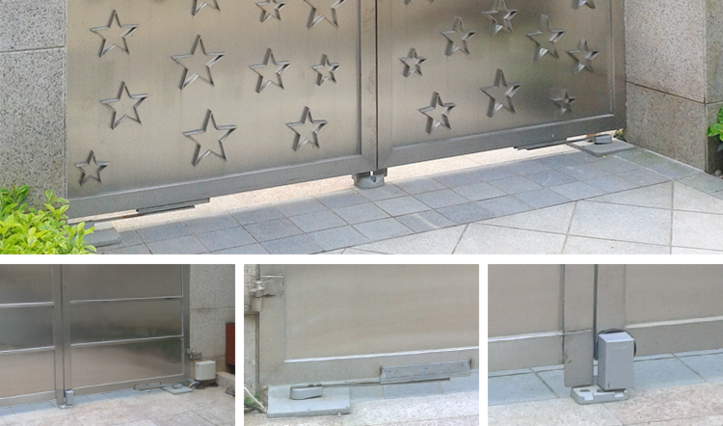

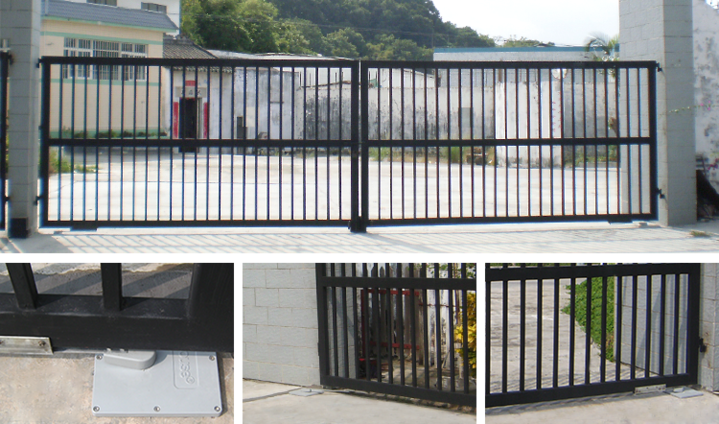

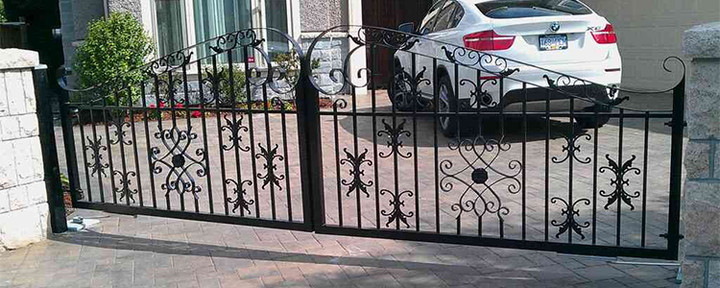

The Engineering Case

  ISO9001 CE / IP67

Optional Accessories
Push Button
Wireless Touch Wall Switch
Keypad System
Waterproof Keypad System
Wireless Video Door Phone
Emergency Switch
Electric Lock - DS218
Electric Lock - EK
ABS Plastic Box
Backup Battery
Remote Control
DC Flashing Light
AC Flashing Light
