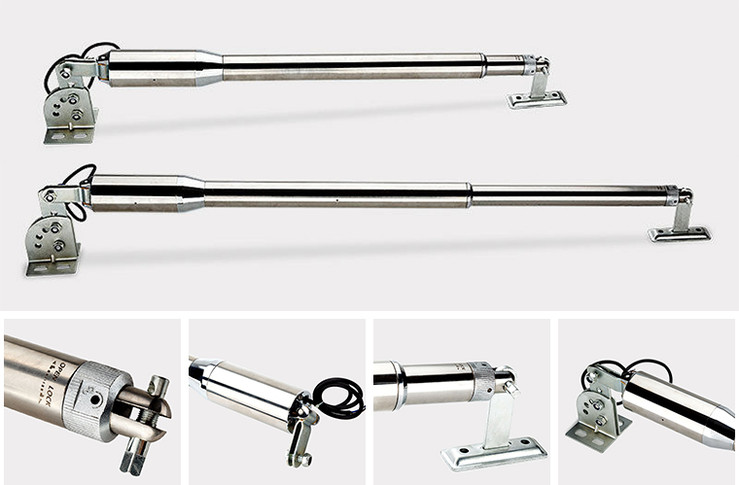

Solar Remote Control Swing Gate Operator - EM

1.   Manufacturer has patent for manual release mechanism. Use this feature in case of power failure,during installation or maintenance

2.   Easy Self-learning feature

3.   Commercial power & solar energy power source can be connected at the same time

4.   Over current immediate stop function

5.   Adjustment time of fast speed & slow speed

6.   Adjustment of force during fast speed & slow speed

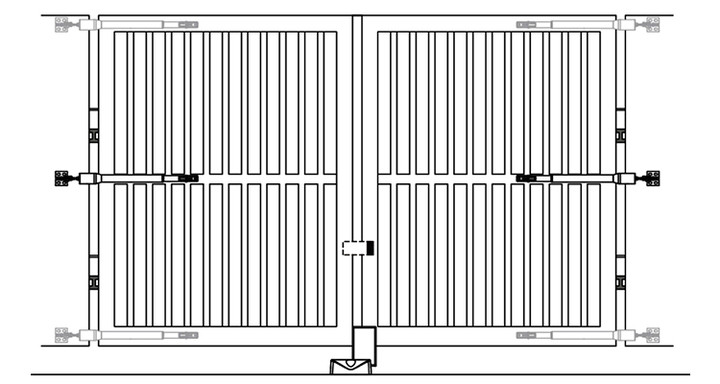

7.   Auto Close function with adjustable closing time delay

8.   Single or dual swing

9.   Use max up to 50 sets of remote controllers

10. Quality assurance: CE and IP66 certificate obtained

11. Optional parts: DC24V gate lock, flashing light, photocell, keypad, push button, backup battery


Specifications

Electrical
Input Voltage AC 110V-240V
Operating Voltage DC 24V
Electronic Controller Microcontroller based
Safety Detection Over current detection
Safety Barrier Infrared beam senor (optional)
Certification CE / IP66

Mechanical
Model EM3 plus EM3 EM2
Max.piston stroke 450 mm 350 mm 200 mm
Max.length of motor 1255 mm 1030 mm 730 mm
Max.leaf's weight 300 kg/leaf 300 kg/leaf 300 kg/leaf
Suitable leaf's length 2 to 3.5 meters/ leaf 1.5 to 2.5 meters/ leaf 1 to 1.6 meters/ leaf
Frame housing Stainless steel /alumnium alloy
Driving method Screw driven piston type
Opening degree 0 to 110 degree
90 degree rotation time 8 to 12 seconds
Temperature -15°C to +55°C

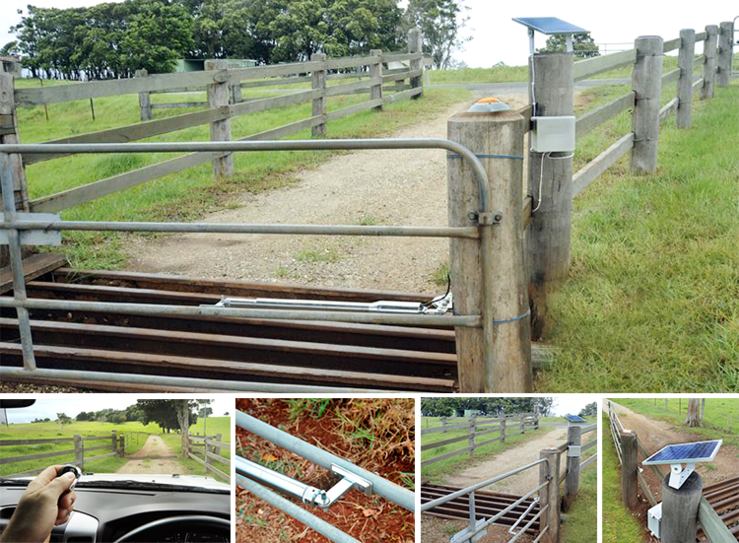

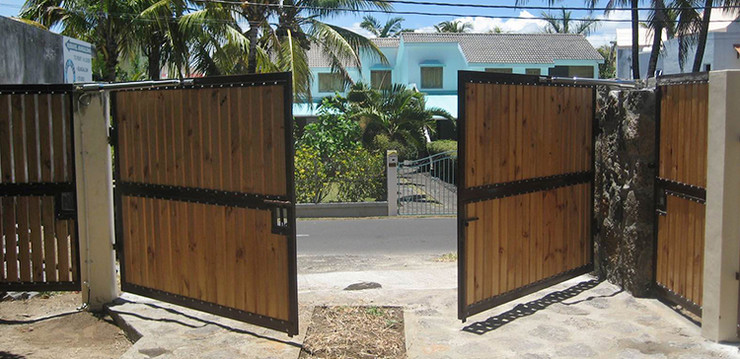

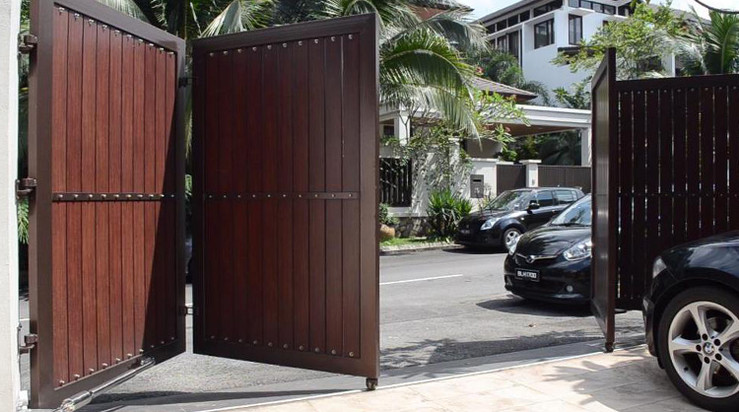

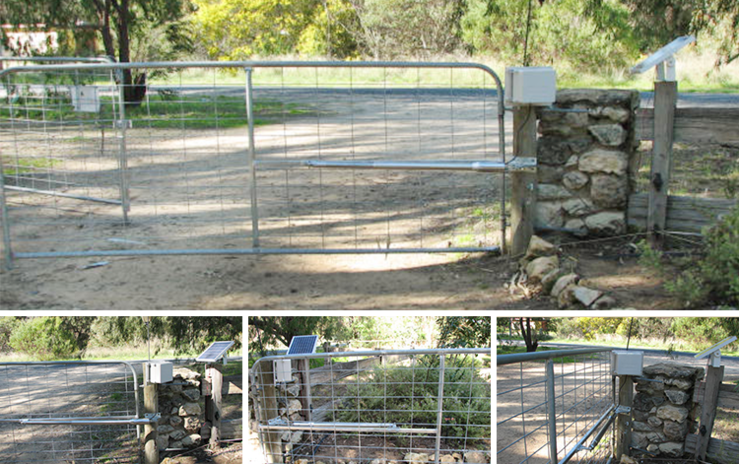

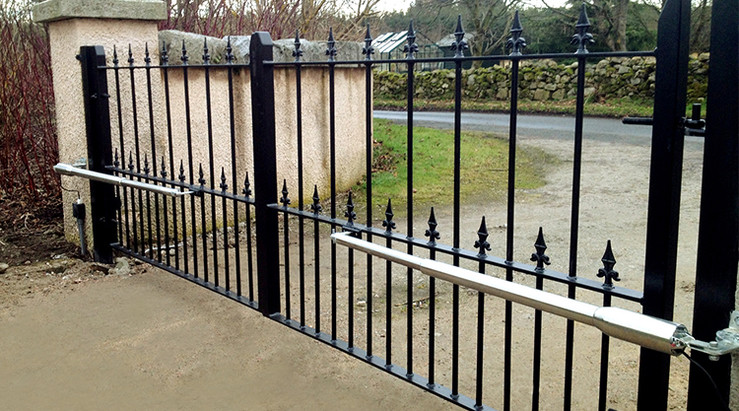

The Engineering Case

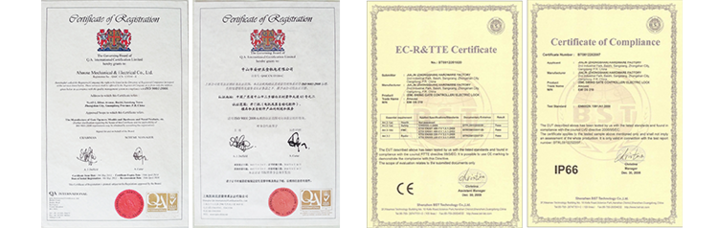

Certifications
ISO9001   CE /IC66

Optional Accessories:
Push Button
Wireless Touch Wall Switch
Keypad System
Waterproof Keypad System
Wireless Video Door Phone
Emergency Switch
Photocell
Electric Lock - DS218
Electric Lock - EK
ABS Plastic Box
Backup Battery

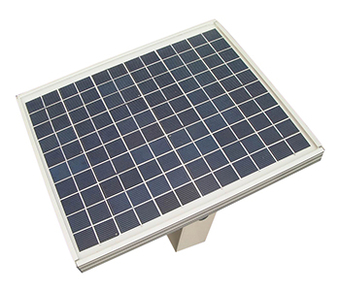

11W Solar Panel

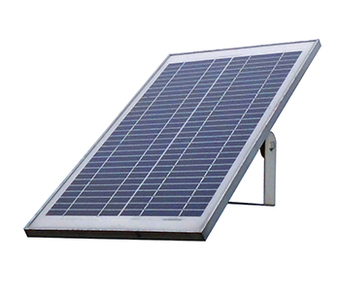

20W Solar Panel
Remote Control
AC Flashing Light
DC Flashing Light
Alarm
