DC24V Sliding Gate Opener - SD
1.  Fully built-in compact design with fashionable streamline
2.  Pedestrian opening or full open function
3.  With interface of flashing lamp (AC/DC) for pre-warning (with LDR control)
4.  Auto closing delay time adjustable
5.  Backup battery is available with battery status display
6.  Full speed operation selectable
7.  Digital gate limits positioning system (DLPS)
8.  Electronic soft start and soft stop
9.  Magnetic limit switch control (optional)
10. Door alarm (when gate in closed position)
11. Photocell sensor to prevent hitting obstacles
12. Automatic stop when hitting obstacle during opening
13. Automatic reverse when hitting obstacle during closing
14. Solar System compatible

Specifications

Electrical
Input Voltage AC240/AC110V±10%V, 50Hz
Operating Voltage DC 24V
Electronic Controller Microcontroller based
Safety Detection Over current detection
Safety Barrier Infrared beam senor (optional)
Certification CE / IP57

Mechanical
Model SD
Max. Gate Weight 800 kg
Motor speed 1800 rpm
Gate moving speed 13m/min
Gate Limit type Intelligent Position Detection/ Magnetic Limit Switch (optional)
Operating distance ≥50m Frequency:433.92 MHz
Remote control mode Close/ Open/ Stop/ Pedestrain Open
Auto close time 0~99 sec (Adjustable)
Noise ≤65dB
Product actual size 29*22*23cm
Packing size 36*29*36cm
Temperature -25°C to +55°C

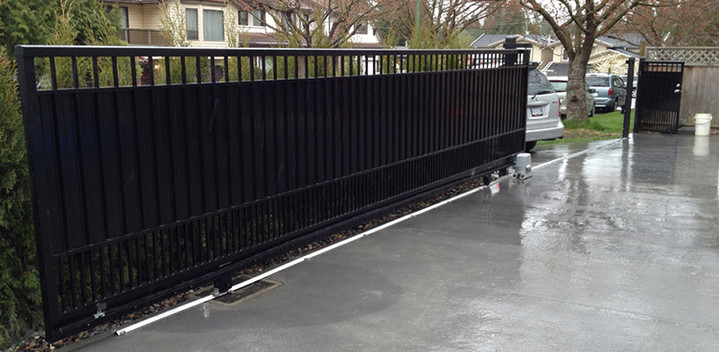

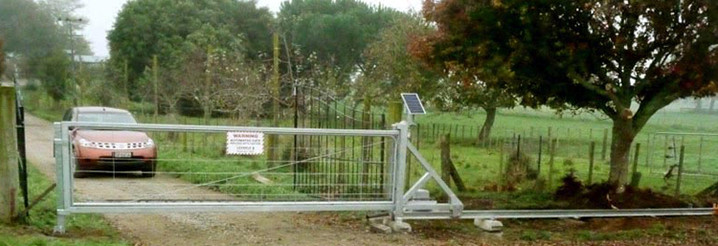

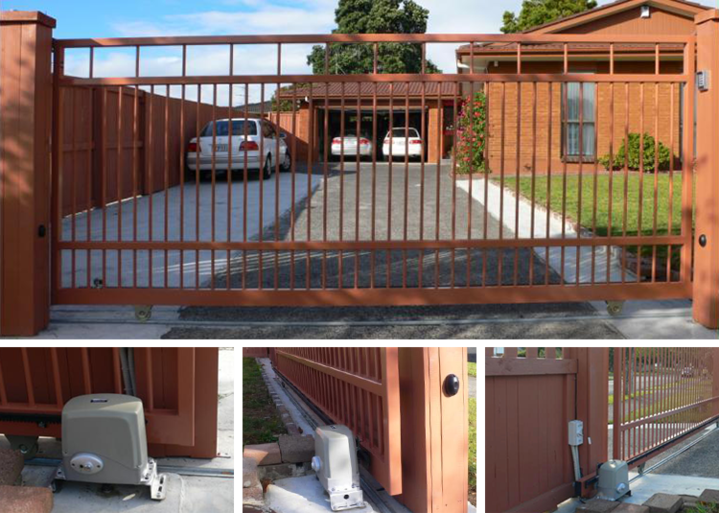

The Engineering case

Certifications
ISO9001
CE /IP57

Optional Parts:
Push Button
Wireless Touch Wall Switch
Keypad System
Waterproof Keypad System
Wireless Video Door Phone
Emergency Switch
Photocell
Steel Rack
Nylo Rack
Chain
Backup Battery
11W Solar Panel
20W Solar Panel
Remote Control
AC Flashing Light
DC Flashing Light
Alarm
ABS Plastic Box
Magnetic Limit Switch
Mounting Base
